Solar Permit Design Services
Complete permit plan sets for US and Canada residential and commercial solar — site plans, single-line diagrams, string layouts and equipment specifications, built to AHJ expectations.
What Is Solar Permit Design?
A permit plan set is the drawing package an authority having jurisdiction reviews before a solar system can legally be installed. It is a compliance document first and an engineering document second: its job is to demonstrate, sheet by sheet, that the proposed system meets the code the reviewer is applying.
That makes local expectations the deciding factor. The same system in two neighbouring jurisdictions can need different sheets, different notes and different levels of detail, which is why permit design is scoped against the specific AHJ rather than to a generic template.
This scope covers US and Canada residential and commercial projects. Comment-response revisions are treated as a normal part of the workflow, not an exception — a set that comes back with reviewer comments is a stage in the process, not a failure of it.
What we need from you
- Site address and jurisdiction
- Roof measurements, photos or an existing survey
- Module, inverter and racking selections
- Utility and interconnection details
Tools used
What's Included
Every item below is a documented part of the Solar Permit Design scope.
Site Plan & Roof Plan
The property and roof drawn with the proposed array, setbacks and access pathways shown.
Cover Sheet
The sheet index, project data and code references the reviewer reads first.
Single & Three Line Diagrams
Electrical diagrams showing the system from module string through to the point of interconnection.
String Layout & Bill of Material
String configuration with the full material list the installation is priced and built from.
Equipment Specifications & Calculations
Specifications and supporting calculations for the equipment in the design.
Attachment Details & Signage
Mounting attachment details and the placarding required by code.
Equipment Data Sheets
Manufacturer data sheets for the modules, inverters and balance-of-system components specified.

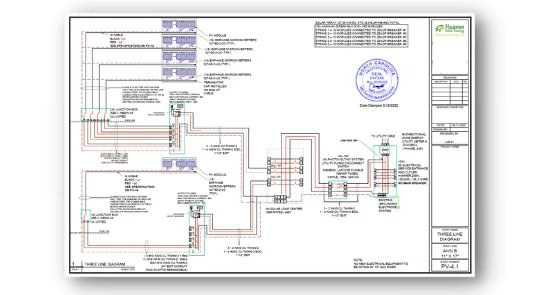

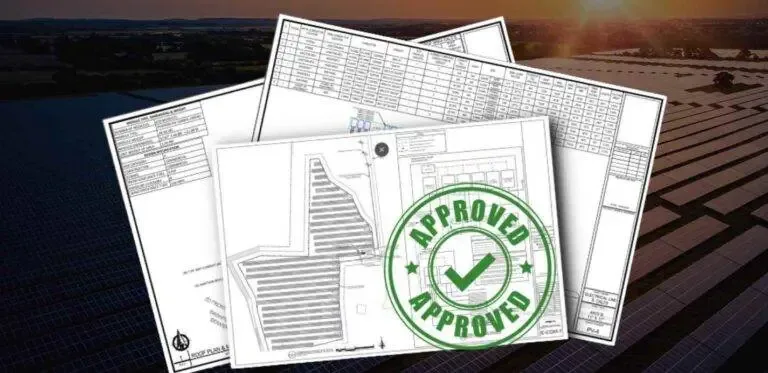

What the output looks like
Project work delivered by Heaven Designs for solar EPCs and developers.
Project imagery courtesy of Heaven Designs, QuickEstimate's solar design and engineering partner.
Who Solar Permit Design Is For
Solar Installers
Keep crews installing instead of drafting, with plan sets prepared to the AHJ's expectations.
Solar EPCs
Absorb permit volume across multiple jurisdictions without a permanent drafting desk for it.
Residential Solar Companies
Turn signed contracts into submitted permits without the backlog that stalls installation dates.
Commercial Solar Companies
Handle commercial plan sets where the sheet count and code detail step up.
Why Permit Sets Are Worth Outsourcing
Volume Without A Bottleneck
Permit drafting scales with the number of deals you close, which is exactly when your own team has least time for it.
Built For The Reviewing AHJ
Sets prepared against local expectations rather than a generic template that invites a comment cycle.
Comments Are Part Of The Process
Comment-response revisions are handled within the agreed scope, not treated as a new job.
Installation Dates Hold
A permit queue that keeps moving is the difference between a booked install date and a rescheduled one.
How Solar Permit Design works
Five steps from enquiry to delivered documentation. QuickEstimate passes your project to Heaven Designs, who scope and carry out the work.
- 01
Submit Your Project
Tell us the service you need and what you know about the site, using the form on this page.
- 02
Project Review
The Heaven Designs team reviews the scope, confirms what it needs from you, and comes back on the engagement.
- 03
Design & Engineering
The design or engineering work is carried out by the Heaven Designs team against the agreed scope.
- 04
Review & Revisions
You review the output and revisions are made within the agreed scope.
- 05
Final Delivery
The final drawings, reports and project documentation are handed over.
Often needed alongside this
Projects rarely need one scope in isolation. Browse all nine solar services.
Electrical CEIG Drawings
SLDs, cable and earthing layouts prepared for CEIG and DISCOM approval.
Explore service
Rooftop Detailed Engineering
Full engineering packages for commercial and industrial rooftop solar.
Explore service
Civil & Structural Engineering
STAAD Pro analysis, foundation design and mounting structure engineering.
Explore serviceRun the sales side in the CRM
The design work is Heaven Designs's. Everything before and after it is yours to manage.
Start your Solar Permit Design project
The service is already selected for you. Share what you know about the project and the Heaven Designs team will come back on scope.
Need Professional Solar Design Support?
QuickEstimate connects solar businesses with professional solar design and engineering support through our trusted partner, Heaven Designs. Submit your project on this page and the Heaven Designs team will pick it up from there.
Delivered by Heaven Designs
Visit Heaven Designs Get a Free Solar Design Quote
Tell us about your project and our team will connect you with the appropriate solar design and engineering experts at Heaven Designs.
Solar Permit Design questions
Which markets are supported for permit design?
What is in a permit package?
Are PE stamps provided?
Can sets be revised after AHJ comments?
Does QuickEstimate submit the permit for me?
Need Solar Permit Design on a live project?
Submit the project and Heaven Designs will scope it. Run everything else in QuickEstimate.
