Solar Civil & Structural Engineering
Structural analysis and civil engineering for solar installations — STAAD Pro analysis, foundation design, PEB structures and MS/GI mounting systems.
What Is Solar Civil & Structural Engineering?
Every solar array transfers load into something: a roof, a foundation, a steel frame. Civil and structural engineering is the discipline that verifies that path — that the structure holding the modules can carry them, and everything the weather does to them, for the life of the plant.
Wind is usually the governing case rather than the weight of the modules. An array is a large, shallow surface held clear of the ground, and uplift on that surface can exceed its dead load several times over. That is what analysis is checking, and why an under-designed structure fails upward.
Analysis is run in STAAD Pro against the codes and standards specified for the project, confirmed at kickoff. Scopes cover both rooftop mounting systems and ground-mount foundations.
What we need from you
- Site data and structure type
- Load criteria and the codes the project is designed to
- Soil notes or a geo-technical report, where available
- Array layout assumptions
Tools used
What's Included
Every item below is a documented part of the Civil & Structural Engineering scope.

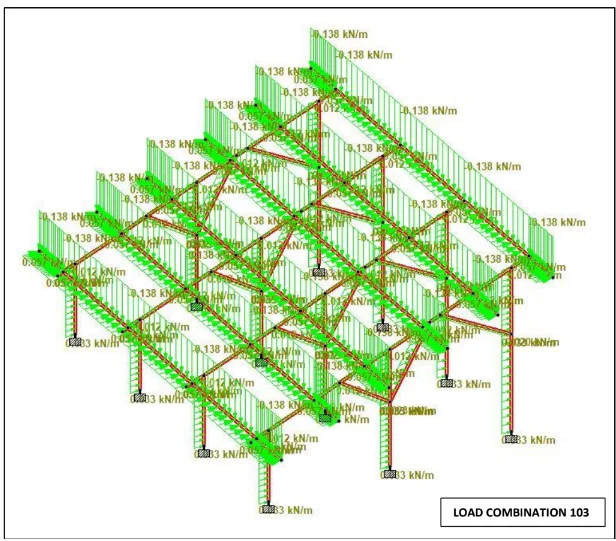

STAAD Pro Analysis
Structural analysis of solar mounting structures and foundations, run in STAAD Pro against the project's specified load criteria.
Foundation Design
Pile, raft and isolated footing designs for solar structures across varying soil conditions.
PEB Structure Design
Pre-engineered building design for inverter rooms, control rooms and equipment shelters.
MS / GI Structure Design
Mild steel and galvanised iron mounting structure design for rooftop and ground-mount systems.
What the output looks like
Project work delivered by Heaven Designs for solar EPCs and developers.
Project imagery courtesy of Heaven Designs, QuickEstimate's solar design and engineering partner.
Who Civil & Structural Engineering Is For
Solar EPCs
Get structures calculated for the site rather than repeated from the last project with a similar span.
Utility-Scale Developers
Foundation design worked against the soil conditions on the parcel, not a generic assumption.
Engineering Teams
Add structural analysis capacity for peak periods without recruiting for it.
Commercial Solar Companies
Satisfy a facility owner's structural consultant that the roof can carry what you are proposing.
Why Structural Work Is Not Optional
Wind Uplift Is The Real Case
Analysis sized against uplift and the project's specified codes, which is where under-designed solar structures actually fail.
Steel Priced, Not Guessed
A calculated structure tells you what section sizes you need — over-specification is a cost you pay on every row.
Soil-Specific Foundations
Pile, raft or isolated footings chosen for the ground conditions rather than defaulted to one type.
Evidence For The Reviewer
Calculations and reports a client-side consultant or approving authority can actually check.
How Civil & Structural Engineering works
Five steps from enquiry to delivered documentation. QuickEstimate passes your project to Heaven Designs, who scope and carry out the work.
- 01
Submit Your Project
Tell us the service you need and what you know about the site, using the form on this page.
- 02
Project Review
The Heaven Designs team reviews the scope, confirms what it needs from you, and comes back on the engagement.
- 03
Design & Engineering
The design or engineering work is carried out by the Heaven Designs team against the agreed scope.
- 04
Review & Revisions
You review the output and revisions are made within the agreed scope.
- 05
Final Delivery
The final drawings, reports and project documentation are handed over.
Often needed alongside this
Projects rarely need one scope in isolation. Browse all nine solar services.
Ground Mount Design
Utility-scale ground-mount layouts with terrain-aware planning and civil coordination.
Explore service
Rooftop Detailed Engineering
Full engineering packages for commercial and industrial rooftop solar.
Explore service
Solar Post-Design
Detailed engineering after the concept is approved — drawings your crew can build from.
Explore serviceRun the sales side in the CRM
The design work is Heaven Designs's. Everything before and after it is yours to manage.
Start your Civil & Structural Engineering project
The service is already selected for you. Share what you know about the project and the Heaven Designs team will come back on scope.
Need Professional Solar Design Support?
QuickEstimate connects solar businesses with professional solar design and engineering support through our trusted partner, Heaven Designs. Submit your project on this page and the Heaven Designs team will pick it up from there.
Delivered by Heaven Designs
Visit Heaven Designs Get a Free Solar Design Quote
Tell us about your project and our team will connect you with the appropriate solar design and engineering experts at Heaven Designs.
Civil & Structural Engineering questions
What structural services are provided for solar?
Is this for rooftop or ground mount?
Which wind and snow codes are followed?
Can structural work ship with the electrical drawings?
What inputs are required?
